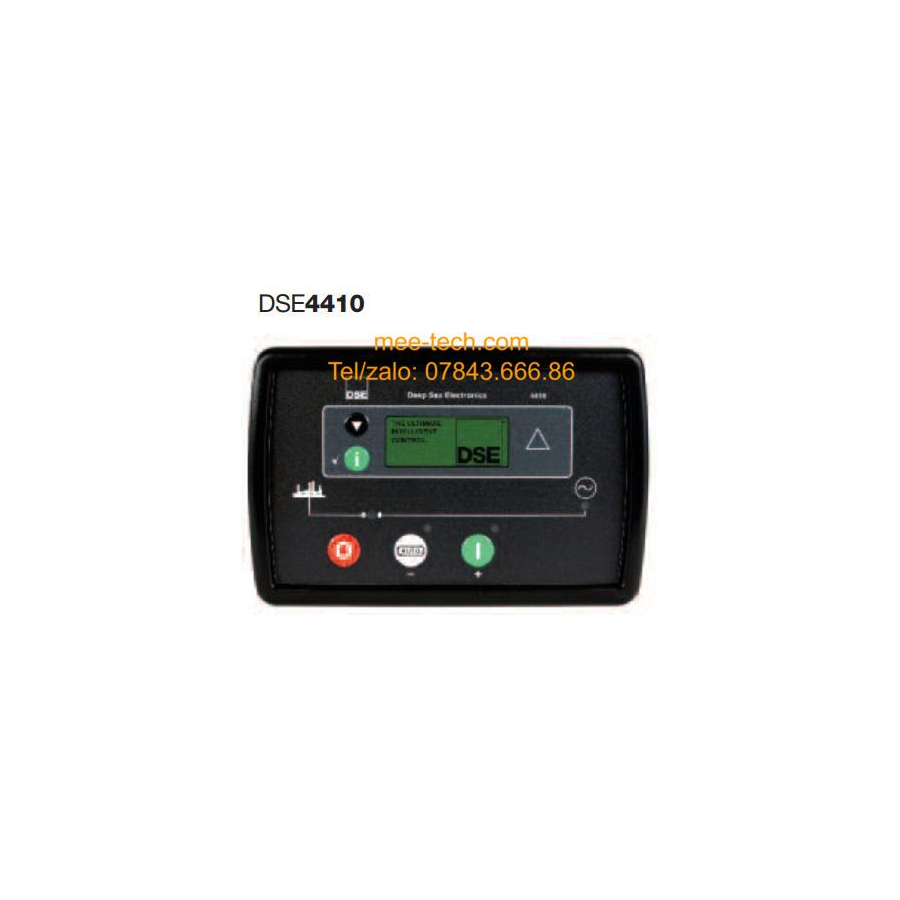

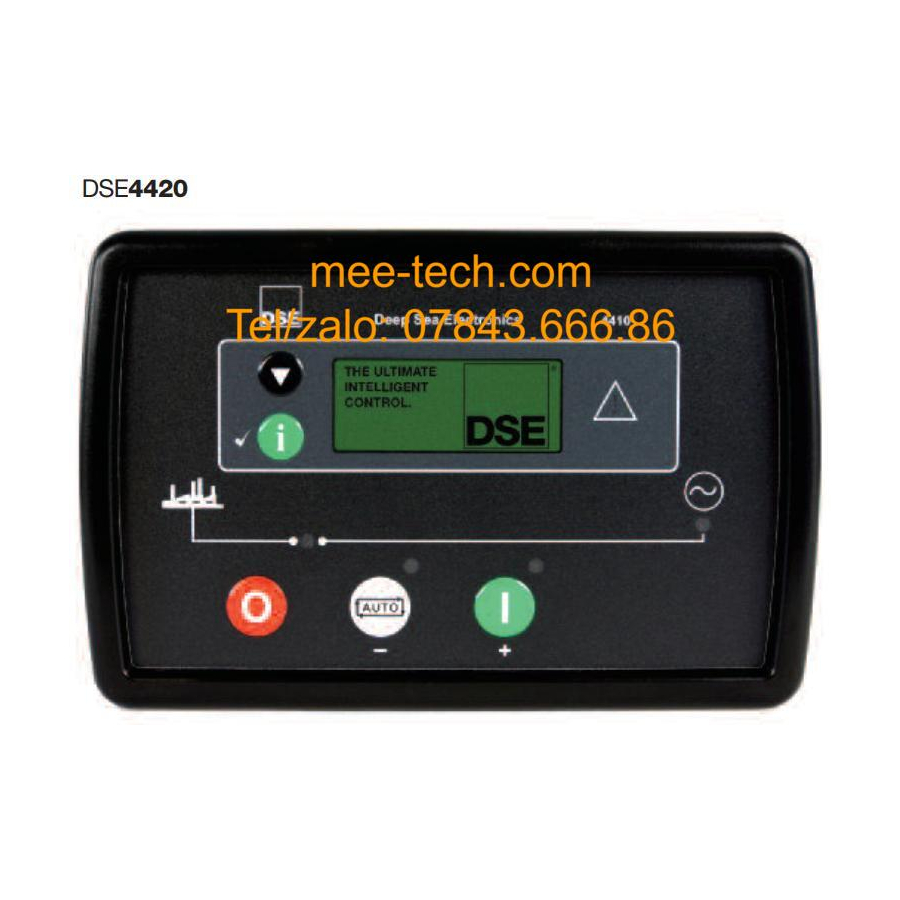

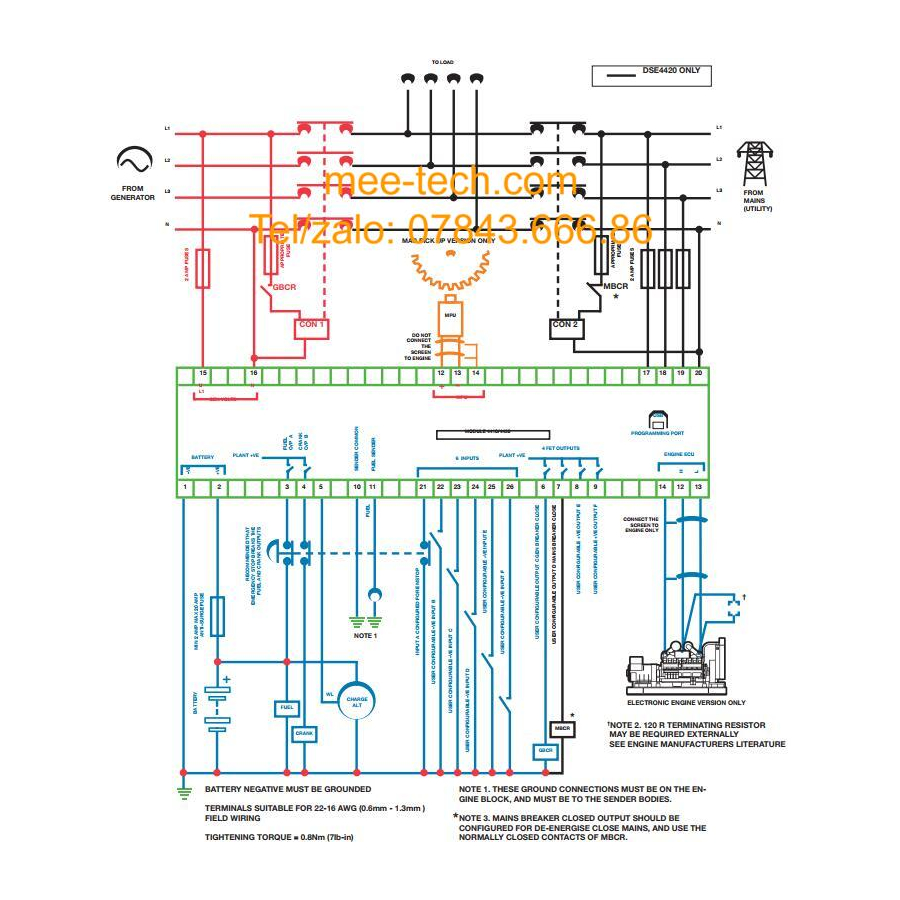

DeepSea DSE4410/4420

DC SUPPLY
CONTINUOUS VOLTAGE RATING
8 V to 35 V Continuous
CRANKING DROPOUTS
Able to survive 0 V for 50 mS, providing
supply was at least 10V before dropout and
supply recovers to 5 V. This is achieved
without the need for internal batteries. LEDs
and backlight will not be maintained during
cranking.
MAXIMUM OPERATING CURRENT
150 mA at 12 V, 80 mA at 24 V
MAXIMUM STANDBY CURRENT
50 mA at 12 V, 30 mA at 24 V
CHARGE FAIL/EXCITATION RANGE
0 V to 35 V
MAGNETIC PICK UP
VOLTAGE RANGE
+/- 0.5 V to 70 V
FREQUENCY RANGE
10,000 Hz (max)
OUTPUTS
OUTPUT A (FUEL)
2 Amp DC at supply voltage
OUTPUT B (START)
2 Amp DC at supply voltage
AUXILIARY OUTPUTS C,D,E,F
2 Amp DC at supply voltage
MAINS (UTILITY) DSE74420 ONLY
VOLTAGE RANGE
15 V - 333 V AC (L-N)
FREQUENCY RANGE
3.5 Hz to 75 Hz
GENERATOR
VOLTAGE RANGE
15 V - 333 V AC (L-N)
FREQUENCY RANGE
3.5 Hz to 75 Hz
DIMENSIONS
OVERALL
180 mm x 116 mm x 42 mm
7.1” x 4.6” x 1.7”
PANEL CUT-OUT
154 mm x 98 mm
6” x 3.9”
