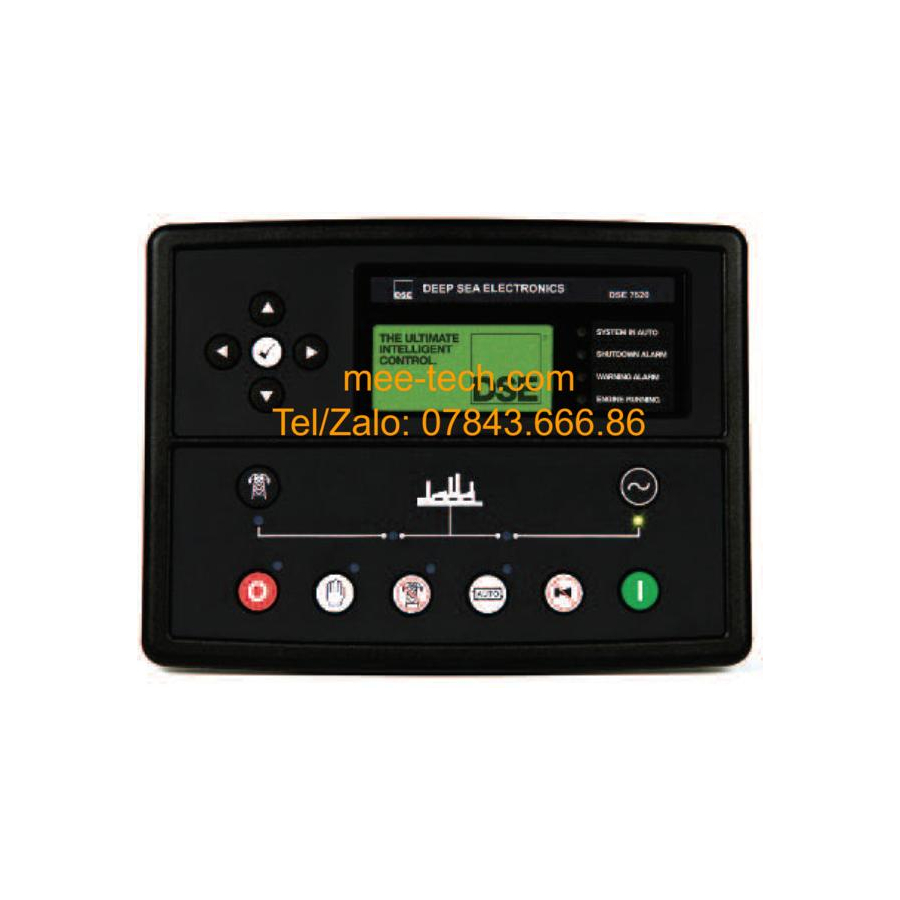

Deepsea DSE7520

DC SUPPLY
CONTINUOUS VOLTAGE RATING
8 V to 35 V Continuous
CRANKING DROPOUTS
Able to survive 0 V for 50 mS, providing
supply was at least 10 V before dropout
and supply recovers to 5 V. This is achieved
without the need for internal batteries
MAXIMUM OPERATING CURRENT
460 mA at 12 V, 245 mA at 24 V
MAXIMUM STANDBY CURRENT
375 mA at 12 V, 200 mA at 24 V
CHARGE FAIL/EXCITATION RANGE
0 V to 35 V
Fixed power source 2.5 W
OUTPUTS
OUTPUT A (FUEL)
15 A DC at supply voltage
OUTPUT B (START)
15 A DC at supply voltage
OUTPUTS C & D
8 A 250 V (Volt free)
AUXILIARY OUTPUTS E,F,G
2 A DC at supply voltage
GENERATOR
VOLTAGE RANGE
15 V - 333 V AC (L-N)
FREQUENCY RANGE
3.5 Hz to 75 Hz
MAINS (UTILITY)
VOLTAGE RANGE
15 V - 333 V AC (L-N)
FREQUENCY RANGE
3.5 Hz to 75 Hz
ALTERNATOR
VOLTAGE RANGE
15 V - 333 V (L-N) 50 Hz - 60 Hz
(Minimum 15 V AC Ph-N)
FREQUENCY RANGE
Up to 75 Hz
MAGNETIC PICK UP
VOLTAGE RANGE
+/- 0.5 V to 70 V
FREQUENCY RANGE
10,000 Hz (max)
BUILT-IN GOVERNOR AND AVR CONTROL
Fully Isolated
Minimum Load Impedance:
1000Ω
Gain Volts: 0 V-10 V DC
Offset Volts: + / - 10 V DC
DIMENSIONS
OVERALL
240 mm x 172 mm x 57 mm
9.4” x 6.8” x 2.2”
PANEL CUTOUT
220 mm x 160 mm
8.7” x 6.3”
