DeepSea DSE703-DSE4110

DC SUPPLY
8V to 35V continuous
CRANKING DROPOUTS
Able to survive 0V for 50mS, providing supply
was at least 10V before dropout and supply
recovers to 5V. This is achieved without the
need for internal batteries.
MAXIMUM OPERATING CURRENT
150mA(12V), 250mA(24V) (DSE4110 only)
50mA (DSE703 only)
TYPICAL CURRENT
20mA(12V and 24V) (DSE4110 only)
12mA (DSE703 only)
ALTERNATOR INPUT RANGE
75V(L-N) to 333V AC (L-N) absolute maximum
ALTERNATOR INPUT FREQUENCY
50Hz – 60Hz at rated engine speed
(minimum:75V AC L-N) (Crank disconnect
from 15V L-N @ 20Hz)
Over speed +14% (+24% overshoot)
Under speed -20%
START & FUEL OUTPUTS
1.2 Amp DC at supply voltage. Switches to
battery negative when active
AUXILIARY OUTPUTS
1.2 Amp DC at supply voltage. Switches to
battery negative when active
DSE703 DIMENSIONS
165mm x 125mm x 29mm
6.5” x 4.9” x 1.2”
DSE703 CUT OUT
149mm X 109mm
5.9” x 4.3”

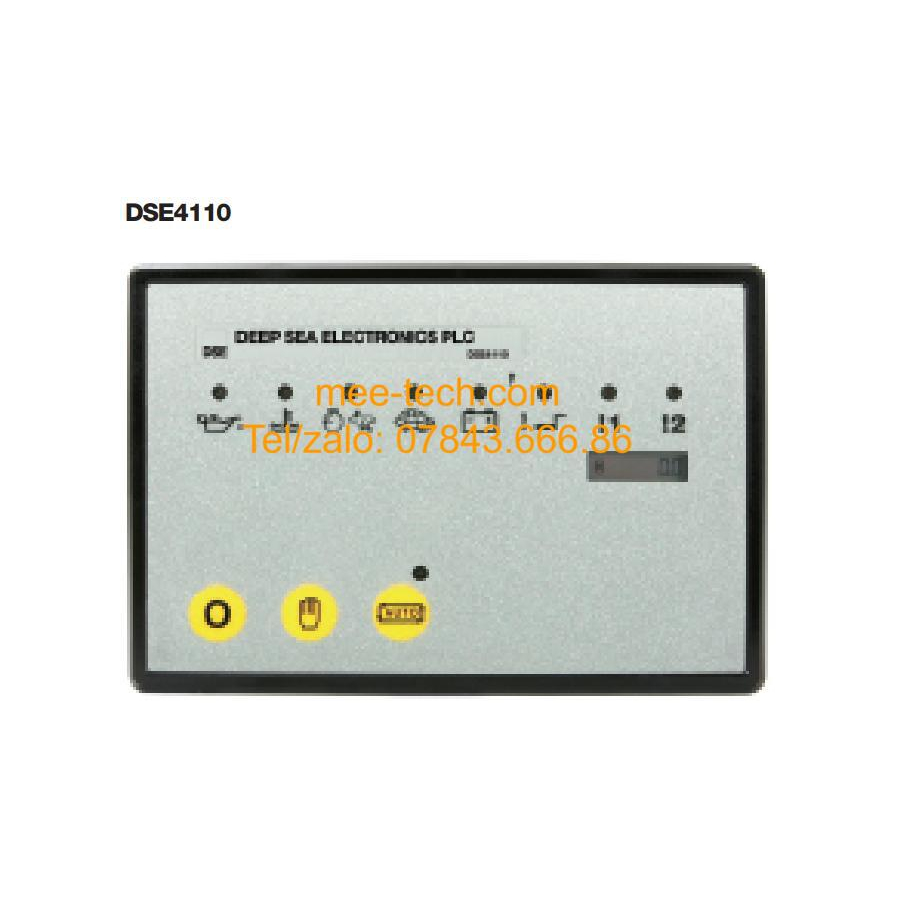

DSE4110 DIMENSIONS
171mm x 115mm x 49mm
6.7” x 4.5” x 1.9”
DSE4110 CUT OUT
154mm x 98mm
6.1” x 3.9”
CHARGE FAIL
8 Volt Charge Fail at 12 Volts, 16 Volt Charge
Fail at 24 Volts
