Deepsea DSE704-DSE4120

DC SUPPLY
8V to 35V continuous
CRANKING DROPOUTS
Able to survive 0V for 50mS, providing supply
was at least 10V before dropout and supply
recovers to 5V. This is achieved without the
need for internal batteries.
MAXIMUM OPERATING CURRENT
170mA(12V), 280mA(24V) (DSE4120 only)
50mA (DSE704 only)
TYPICAL CURRENT
35mA(12V and 24V) (DSE 4120 only)
12mA (704 only)
ALTERNATOR INPUT RANGE
75V(L-N) to 333V AC (L-N) absolute maximum
ALTERNATOR INPUT FREQUENCY
50Hz – 60Hz at rated engine speed
(minimum:75V AC L-N) (Crank disconnect from
15V L-N @ 20Hz) Overspeed +14% (+24%
overshoot) Underspeed -20%
START & FUEL OUTPUTS
1.2 Amp DC at supply voltage. Switches to
battery negative when active
AUXILIARY OUTPUTS
1.2 Amp DC at supply voltage. Switches to
battery negative when active

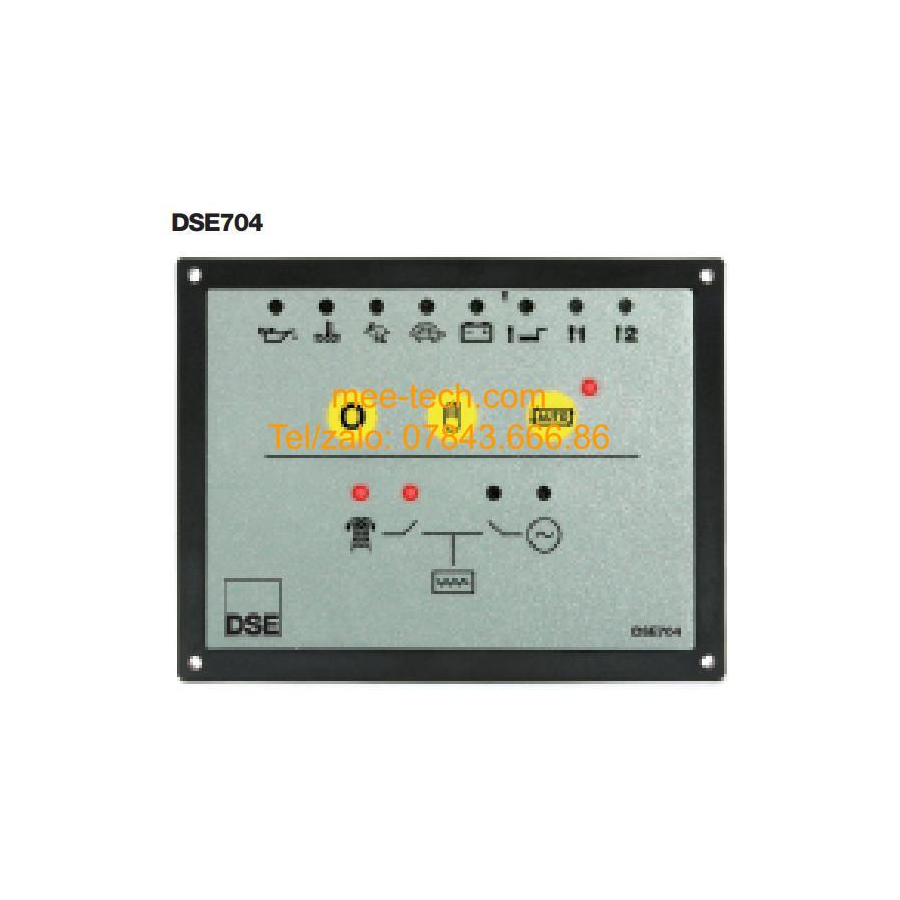

DSE704 DIMENSIONS
165mm x 125mm x 29mm
6.5” x 4.9” x 1.2”
DSE704 CUT OUT
149mm X 109mm
5.9” x 4.3”

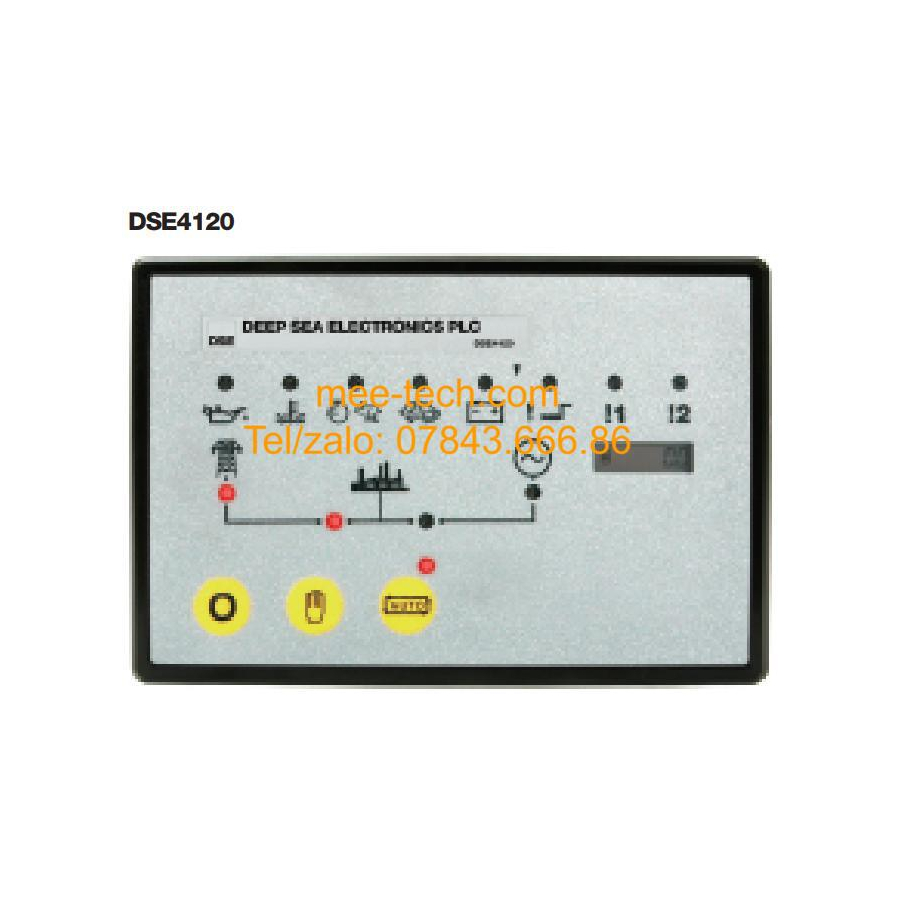

DSE4120 DIMENSIONS
171mm x 115mm x 49mm
6.7” x 4.5” x 1.9”
DSE4120 PANEL CUT OUT
154mm x 98mm
6.1” x 3.9”
CHARGE FAIL
8 Volt Charge Fail at 12 Volts, 16 Volt Charge
Fail at 24 Volts
