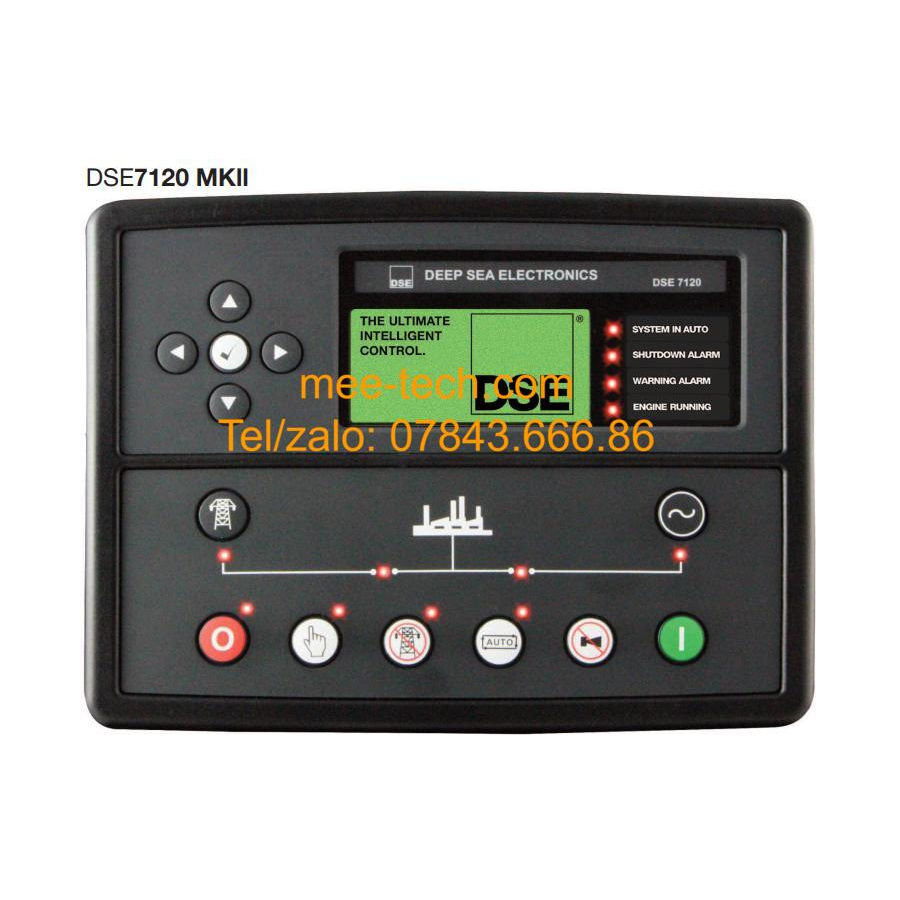

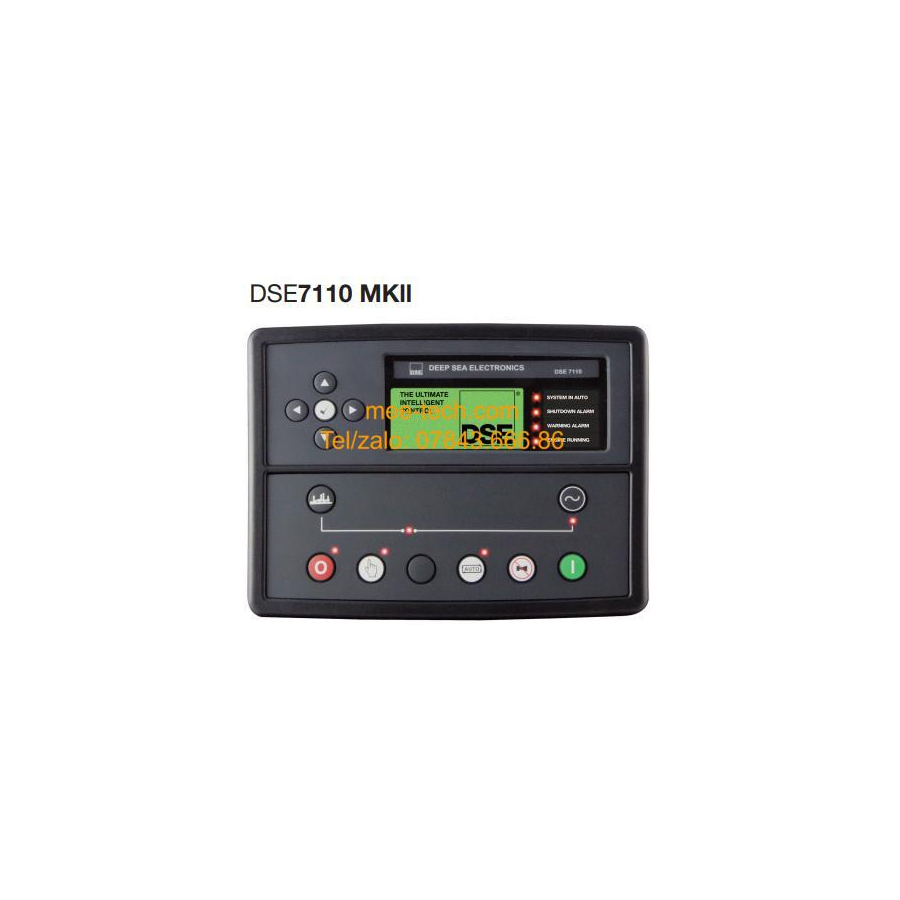

DeepSea DSE7110/7120 MKII

DC SUPPLY
CONTINUOUS VOLTAGE RATING
8 V to 35 V Continuous
CRANKING DROPOUTS
Able to survive 0 V for 50 mS, providing
supply was at least 10 V before dropout and
supply recovers to 5 V. This is achieved
without the need for internal batteries.
LEDs and backlight will not be maintained
during cranking.
MAXIMUM OPERATING CURRENT
290 mA at 12 V, 140 mA at 24 V
MAXIMUM STANDBY CURRENT
75 mA at 12 V, 40 mA at 24 V
CHARGE FAIL/EXCITATION RANGE
0 V to 35 V
GENERATOR & MAINS (UTILITY)
VOLTAGE RANGE
15 V to 415 V AC (Ph to N)
26 V to 719 V AC (Ph to Ph)
FREQUENCY RANGE
3.5 Hz to 75 Hz
MAGNETIC PICKUP
VOLTAGE RANGE
+/- 0.5 V to 70 V
FREQUENCY RANGE
10,000 Hz (max)
INPUTS
DIGITAL INPUTS A TO F
Negative switching
ANALOGUE INPUTS A TO C
Configurable as:
Negative switching digital input
0 Ω to 480 Ω
ANALOGUE INPUT D
Configurable as:
Negative switching digital input
0 V to 10 V
4 mA to 20 mA
0 Ω to 480 Ω
OUTPUTS
OUTPUT A & B (FUEL & START)
10 A short term, 5 A continuous,
at supply voltage
OUTPUTS C & D
8 A AC at 250 V AC (Volt-free)
AUXILIARY OUTPUTS E, F, G & H
2 A DC at supply voltage
DIMENSIONS
OVERALL
240 mm x 181 mm x 42 mm
9.4” x 7.1” x 1.6”
PANEL CUT-OUT
220 mm x 160 mm
8.7” x 6.3”
