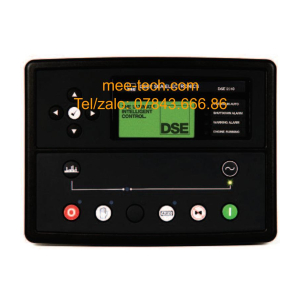

Deesea DSE2510/20

DC SUPPLY CONTINUOUS VOLTAGE RATING
8 V to 35 V Continuous
CRANKING DROPOUTS
Able to survive 0 V for 50 mS, providing
supply was at least 10 V before dropout
and supply recovers to 5 V. This is
achieved without the need for internal
batteries. LEDs and backlight will not be
maintained during cranking.
MAXIMUM OPERATING CURRENT
340mA at 12V 160mA at 24V
MAXIMUM STANDBY CURRENT
160mA at 12V 80mA at 24V
DIMENSIONS
OVERALL
240mm x 181.1mm x 41.7mm
9.4” x 7.1” x 1.6”
PANEL CUT-OUT
220mm x 160mm
8.7” x 6.3”
MAXIMUM PANEL THICKNESS
8 mm
0.3”
